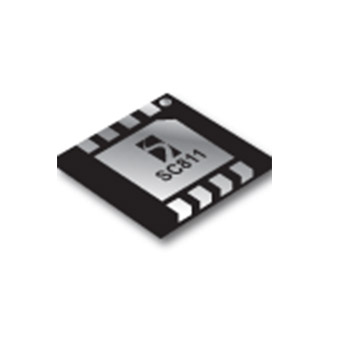

SC811
Not Recommended for New Designs
Not recommended for new designs.
功能
- Single input charger with three charging modes
- Constant voltage — 4.2V, 1% regulation
- Fast-charge current regulation — 15% at 70mA,9% at 700mA
- Charging by current regulation, voltage regulation,and thermal limiting
- Input voltage protection — 30V
- Current-limited adapter support capability — reduces power dissipation in charger IC
- USB high and low power modes limit charge current to prevent USB VBUS overload
- Instantaneous CC-to-CV transition for faster charging
- Programmable battery-dependent currents (adapter mode fast- and pre-charge, termination)
- Programmable source-limited currents (USB-high mode fast-charge, and USB-low mode fast- and pre-charge)
- Independent programming of termination current with dual-mode operation
- Three termination options — fl oat-charge, automatic re-charge, or forced re-charge to keep the battery topped-off after termination without fl oat-charging
- Soft-start reduces adapter or USB load transients
- High operating voltage range of SC811 permits use of unregulated adapters
- Complies with CCSA YD/T 1591-2006
- Space saving 2x2x0.6 (mm) MLPD package
- WEEE and RoHS compliant
- Mobile phones
- MP3 players
- GPS handheld receivers
应用
封装
- MLPD-8 2x2
订购代码
- SC811ULTRT: Lead-free package, fully WEEE and RoHS compliant, tape and reel only.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC811
产品描述
ADAPTER / USB TRI-MODE SINGLE-CELL LI-ION CHARGER
引脚数
8
封装类型
MLPD-UT
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
