概览

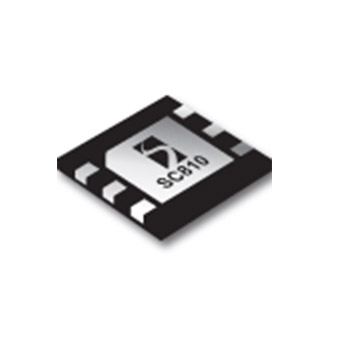

The SC810 is a linear single-cell Li-ion battery charger in a 6 lead 2x2 MLPD Ultra-thin package. The input will survive sustained input voltage up to 30V to protect against hot plug overshoot and faulty charging adapters.
封装
- MLPD-6 2x2
订购代码
- SC810ULTRT: Lead-free package, fully WEEE and RoHS compliant, tape and reel only.
PB Free/ROHS
Learn More →功能
- Single input charger
- Constant voltage — 4.2V, 1% regulation
- Fast-charge current regulation — 15% at 70mA, 9% at 700mA
- Three mode charging — current regulation, voltage regulation, and thermal limiting
- Input voltage protection — 30V
- Current-limited charging support — reduces power dissipation in charger IC
- Instantaneous CC-to-CV transition for faster charging
- Three termination options — fl oat-charge, automatic re-charge, or forced re-charge to keep the battery topped-off after termination without fl oat-charging
- Soft-start reduces adapter load transients
- High operating voltage range permits use of unregulated adapters
- Complies with CCSA YD/T 1591-2006
- Space saving 2x2x0.6 (mm) MLPD package
- WEEE and RoHS compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SC810 Datasheet | 2018-12-13 | | |
应用
- Mobile phones
- MP3 players
- GPS handheld receivers
