SC806
Not Recommended for New Designs
Not recommended for new designs.
功能
- Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection
- High Accuracy Charge Current
- Tiny 3mm x 3mm 10 lead MLP package
- Programmable precharge, fastcharge and termination current
- Battery voltage controlled to 1% accuracy
- Battery Charge Current accurate to 5% at 800mA
- Soft-start for step load and adapter plug-in
- Up to 1A continuous charge current
- Input voltage range from 3V to 6V allows seamless charging from current limited adapter
- 0.1µA battery drain current in shutdown and monitor modes
- Over-current protection in all charging modes
- Automatic loss of battery detection
- Adapter Present, Charge Status, and No Battery output LED drivers
- Cellular phones
- PDAs
- Handheld meters
- Charging stations
- USB chargers
- Digital cameras
- GPS handhelds
- Programmable current source
应用
封装

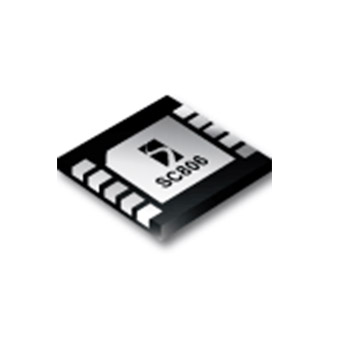

- MLPD-10 3x3
订购代码
- SC806EVB: Evaluation Board
- SC806IMLTRT: MLP-10 lead-free package
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC806
产品描述
HIGH CURRENT LITHIUM-ION BATTERY CHARGER SYSTEM
引脚数
10
封装类型
MLPD
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
