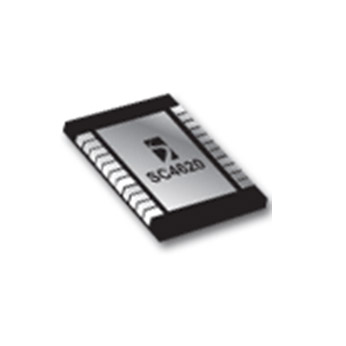

SC4620
Not Recommended for New Designs
Not recommended for new designs.
功能
- VIN Range: 2.3 – 5.5V
- 2.5A Continuous Output Current
- Adjustable Output Voltage 0.5V to Vin
- Up to 95% Efficiency
- Synchronizable and Programmable Frequency: 200kHz – 2MHz
- Power Good Monitor
- <1μA of Shutdown Current
- Programmable Soft Start
- Programmable Current Limit
- Over Temperature protection
- -40 to +85 °C Ambient Temperature Range
- 4X4mm MLPQ-20 packages- WEEE and RoHS compliant
- Low Voltage Distributed DC-DC Converters
- Telecommunication Power Supplies
- Portable Equipment
- xDSL
应用
封装
- MLPQ-20 4x4mm
订购代码
- SC4620MLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape and Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4620
产品描述
LOW IMPUT VOLTAGE, HIGH EFFICIENCY, 2.5A INTEGRATED FET SYNCHRONOUS STEP DOWN DC/DC REGULATOR
引脚数
20
封装类型
MLPQ
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
