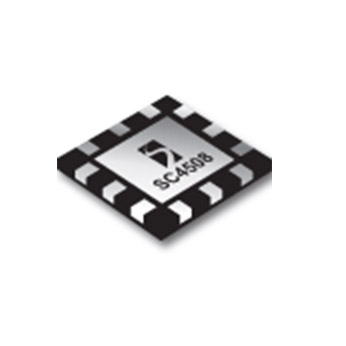

SC4508
Not Recommended for New Designs
Not recommended for new designs.
功能
- Wide input voltage range 2.7V to 15V
- Programmable output voltage
- Programmable switching frequency up to 1.5MHz
- Buck or buck boost(inverting) configuration
- Current mode control with slope compensation
- Very low quiescent current in shutdown mode
- Accessible reference voltage
- MLPQ-12 package
- Low power point of use converters
- Single or multiple output low power converters
- Positive and/or negative output voltage
- DSL cards
- Graphic cards
- I/O cards
- Negative bias supplies
应用
封装
- MLPQ-12
订购代码
- SC4508IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4508
产品描述
BUCK OR BUC-BOOST INVERTING CURRENT MODE CONTROLLER
引脚数
12
封装类型
MLPQ
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
