SC414
Product inactive. Information on this page is for reference only.

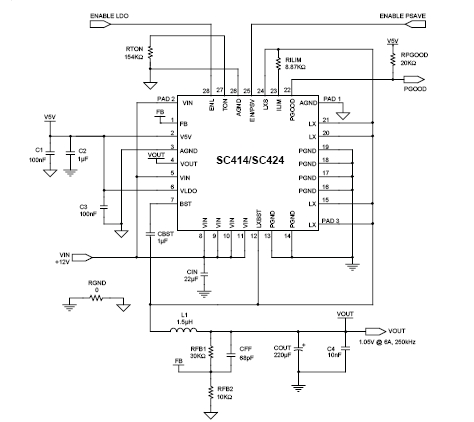

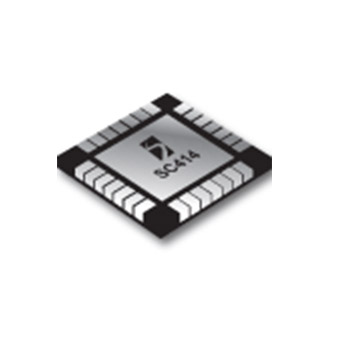

The SC414 is a stand-alone synchronous buck power supply. It features integrated power MOSFETs, a bootstrap switch, and a 5V LDO in a spacesaving MLPQ- 4x4mm 28-pin package. Press Release . . .
For selectable regular power-save see SC424 product page.
功能
- Input voltage - 3V to 28V
- Internal power MOSFETs - 6A
- Integrated bootstrap switch
- Smart power-save protection
- Integrated 5V, 150mA LDO with bypass capability
- TC compensated RDS(ON) sensed current limit
- Pseudo-fixed frequency adaptive on-time control
- Designed for use with ceramic capacitors
- Programmable VIN UVLO threshold
- Independent enable for switcher and LDO
- Selectable ultrasonic power-save (SC414)
- Internal soft-start and soft-shutdown at output
- Internal reference - 1% tolerance
- Over-voltage/under-voltage fault protection
- Power good output
- SmartDrive™
- Lead-free 4x4mm, 28 Pin MLPQ package
- Fully WEEE and RoHS compliant Applications
- Notebook, desktop, tablet, and server computers
- Networking and telecommunication equipment
- Printers, DSL, and STB applications
- Embedded applications
- Power supply modules
- Point of load power supplies
应用
封装
- MLPQ-28 4x4mm
订购代码
- SC414MLTRT: Lead-Free, WEEE and RoHS Compliant, 3000pcs Tape and Reel Only
- SC414EVB: SC414 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC414
产品描述
6A ECOSPEED INTEGRATED FET REGULATOR WITH 5V LDO
引脚数
32
封装类型
MLPQ
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
