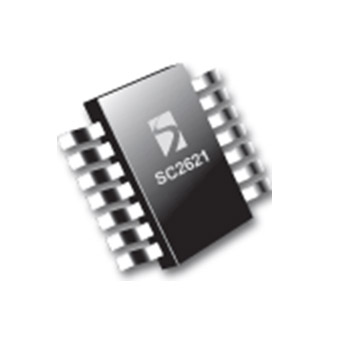

SC2621
Not Recommended for New Designs
Not recommended for new designs.
功能
- 500 kHz switching frequency
- 4 V to 16 V power rails
- Internal LDO for optimum gate drive voltage
- 1.5 A gate drive current
- Programmable output voltages
- Internal soft start
- Power rail under-voltage lockout
- Hiccup-mode short circuit protection
- SOIC-14 package
- Graphics processor power supplies on PCI-Express platform
- Embedded, low-cost, high-efficiency converters
- Point-of-load power supplies
应用
封装
- SOIC-14
订购代码
- SC2621IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC2621STRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2621
产品描述
500KHZ VOLTAGE MODE PWM CONTROLLER WITH LINEAR POWER REGULATOR
引脚数
14
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
