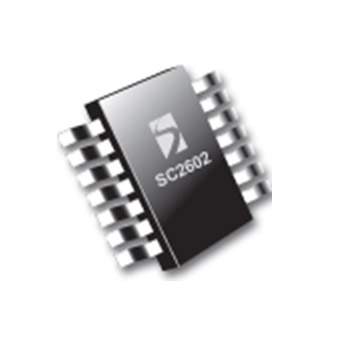

SC2602
Not Recommended for New Designs
Not recommended for new designs.
功能
- Synchronous operation for high efficiency (95%)
- RDS(ON) current sensing
- On-chip power-good and OVP functions
- Small size with minimal external components
- Soft start
- Enable function
- SO-14 package
- Microprocessor core supply
- Low-cost synchronous applications
- Voltage regulator modules (VRM)
- DDR termination supplies
- Networking power supplies
- Sequenced power supplies
应用
封装
- SOIC-14
订购代码
- SC2602ASTR: Package Minimum Tape & Reel Only
- SC2602STR: Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2602
产品描述
SYNCHRONOUS VOLTAGE MODE CONTROLLER FOR DISTRIBUTED POWER SUPPLY
引脚数
14
封装类型
SOIC
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
(-40°C 至 +85°C / 4000 循环)
(-40°C 至 +85°C / 4000 循环)
是
环境温度存储,锡须测试
(50°C,4000 小时)
(50°C,4000 小时)
是
60°C/90% 相对湿度 4000 小时,锡须测试
是
声明和报告
IPC-1752-2
