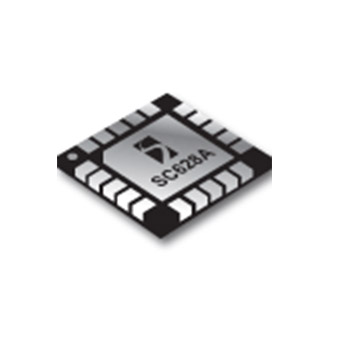

SC628A
Not Recommended for New Designs
Not recommended for new designs.
The SC628A is a high efficiency charge pump LED driver using Semtech’s proprietary charge pump technology. Performance is optimized for use in single-cell Li-ion battery applications. The load and supply conditions determine whether the charge pump operates in 1x, 1.5x, or 2x mode.
功能
- Input supply voltage range — 3.0V to 5.5V
- Charge pump modes — 1x, 1.5x and 2x
- Flash LED — 1000mA max in fl ash mode, 275mA max continuous for spotlight
- Charge pump frequency — 250kHz
- I2C compatible interface — up to 400kHz
- External flash control pin to sync with camera
- One second flash time out with disable feature
- Automatic sleep mode (fl ash off ) — IQ = 100μA
- Low shutdown current — 0.1μA (typical)
- Ultra-thin package — 3mm x 3mm x 0.6mm
- Fully WEEE and RoHS compliant
- Cellular phone flash
- PDA flash
应用
封装
- MLPQ-UT-20
订购代码
- SC628AULTRT: Lead-Free, WEEE and RoHS Compliant, 3000 pcs, Tape and Reel only.
