概览

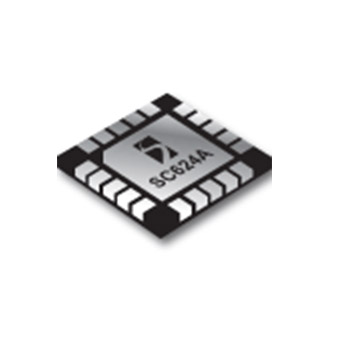

The SC624A is a high efficiency charge pump LED driver using Semtech’s proprietary mAhXLife™ technology. Performance is optimized for use in single-cell Li-ion battery applications.
封装
- MLPQ-UT-20 (3 X 3 mm)
订购代码
- SC624AULTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
PB Free/ROHS
Learn More →功能
- Input supply voltage range — 3.0V to 5.5V
- Charge pump modes — 1x, 1.5x and 2x
- Four programmable current sinks with 32 steps from 0.5mA to 25mA
- Two user-configurable 100mA low-noise LDO regulators
- Charge pump frequency — 250kHz
- I2C compatible interface — up to 400kHz
- Backlight current accuracy ±1.5% typical
- Backlight current matching ±0.5% typical
- Programmable fade-in/fade-out for main backlight
- Automatic sleep mode (LEDs off ) — IQ = 100μA
- Low shutdown current — 0.1μA (typical)
- Ultra-thin package — 3mm x 3mm x 0.6mm
- Fully WEEE and RoHS compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SC624A Datasheet | 2018-12-20 | | |
应用
- Cellular phone backlighting
- PDA backlighting
- Camera I/O and core power
