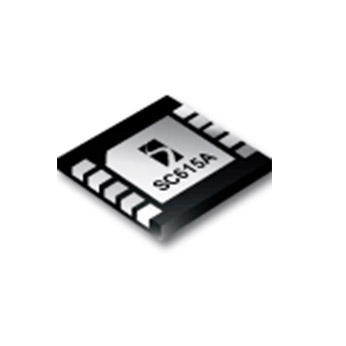

Semtech SC615A
Charge Pump LED Driver for 700mA Flash (40% Torch) + Logic Interface
Not Recommended for New Designs - Last Day of purchase: 5/1/11
概览
功能
- Two Selectable Modes - Flash and Spotlight
- Up to 700mA Output - Flash Mode
- Up to 280mA Output - Spotlight Mode
- 500mA Over Temperature Range and Voltage Range - Flash Mode
- Spotlight mode set to 40% of Flash Current
- 3.0V to 5.25V Input Range
- External Flash Control Pin for Synchronization to a Camera Module or Graphics Controller
- Short Circuit, Over-Voltage, and Over-Temperature Protection
- Soft-Start Functionality
- Two Control Inputs for Maximum Versatility
- Shutdown Current < 2µA
- Micro Lead Package MLPD-10, 3mm x 3mm
应用
- Mobile Camera Phones
- 数码相机
- PDAs with Built-in Cameras
封装
MLPD-10 (3X3 mm)
订购代码
- SC615AMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
图表和规格
框图
点击图表放大
