uClamp3324P
The μClamp3324P, part of the μClamp® series of products, is a solid-state device designed specifically for transient suppression. It is constructed using Semtech’s proprietary EPD process technology. The EPD process provides low standoff voltages with significant reductions in leakage currents and capacitance over traditional pn junction processes.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- Small package for use in portable electronics

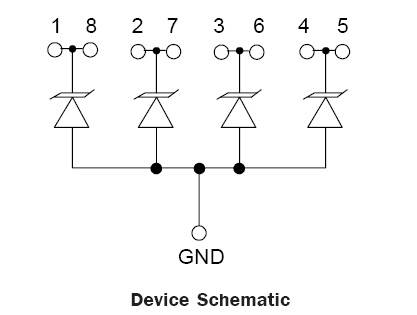

- Protects four I/O
- 工作电压：3.3V
- Flow thru design for easy layout
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装

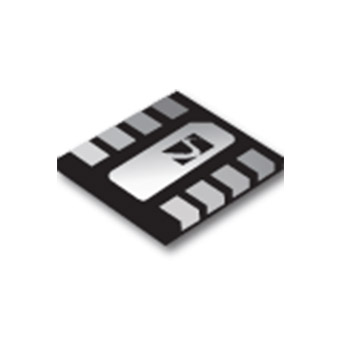

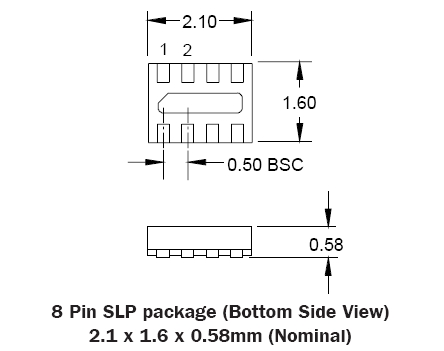

- SLP2116P8
订购代码
- uClamp3324P.TCT
Pb(Lead)-Free/RoHS-Green Info
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
资源
To see more videos Videos
The Importance of Keyboard ESD Protection
Since the dawn of computers, the keyboard has been the primary communication mechanism between human and machines. Over the years, many technologies and interfaces have changed, but the keyboard has barely changed in both form and function. Recently, I bought an exclusive wireless keyboard. Initially, it communicated with the computer via Bluetooth without any issues. However, after a month or so, it suddenly stopped. When I opened the internal circuit, I was surprised that the keys had no electrostatic discharge (ESD) protection. Any electronic device's keypad, side keys or push buttons are vulnerable to ESD due to constant human interaction with them. Adding ESD protection devices in a keyboard/keypad/side keys can avoid disastrous situations such as the failure of my keyboard. Let us discuss ESD in general and how we can protect our electronic devices from it.
