uClamp3311T
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- 低反向电流:10nA 典型值 (VR=3.3V)
- 工作电压:3.3V
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- 便携式仪表
- Keypads, Side Keys, LCD Displays
- Notebooks & Desktop Computers
- MP3 播放器
应用

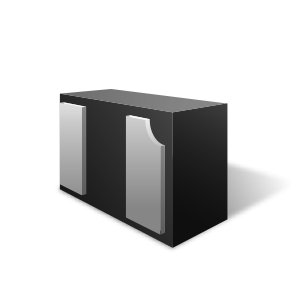

封装
- SLP1006P2T
订购代码
- uClamp3311T.TCT - 无铅、无卤素且符合 RoHS/WEEE 标准
- uClamp3311T.TNT - 无铅、无卤素且符合 RoHS/WEEE 标准
Pb(Lead)-Free/RoHS-Green Info
