RClamp3331PQ
RailClamp®3331PQ 是一款低压、低电容、汽车级 RailClamp 瞬态电压抑制器 (TVS)，经过优化，可保护天线和高速数据端口免受静电放电 (ESD) 威胁。RClamp3331PQ 具备低电容特性，是保护汽车天线免受 ESD 瞬变影响的理想器件。
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准，±30kV（空气和接触）

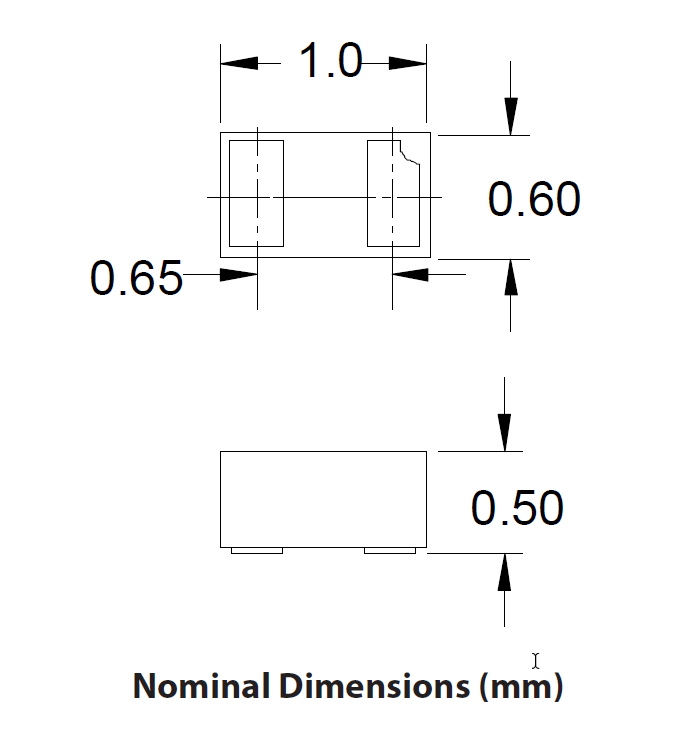

- Ultra-small package
- 保护一条线路
- 低 ESD 钳位电压
- Working voltage: ±3.3V
- 低电容：0.35 pF（典型值）
- 小漏电流
- 低动态电阻
- Qualified to AEC-Q100, Grade 1
- 固态硅雪崩技术
- 天线
- USB3.0 / USB 3.1/ USB Type-C
- 汽车应用
- Industrial Equipment
应用
