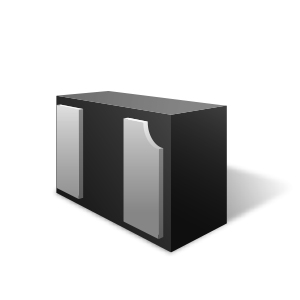

RClamp0531T
RailClamp is an ultra low capacitance Transient Voltage Suppressor (TVS) designed to protect high speed data interfaces. This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±20kV（空气），±12kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one I/O line
- 低电容：0.8pF
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- 蜂窝手机和配件
- 数字视频接口 (DVI)
- 调频天线
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
应用
封装
- SLP1006P2T
订购代码
- RClamp0531T.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0531T
产品描述
ULTRA-LOW CAPACITANCE 1-LINE ESD PROTECTION
引脚数
2
封装类型
SLP1006P2T
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
镍钯金
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
声明和报告
IPC-1752-2
Related Parts
RCLAMP0531TQ.TCT
