LCDA24C-1

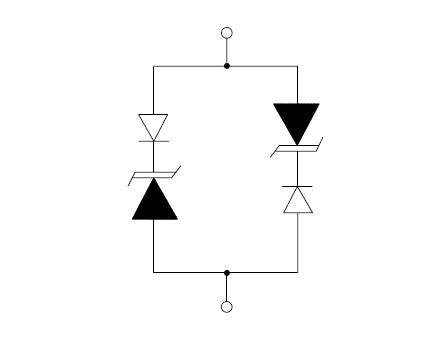

The LCDA24C-1 is a low capacitance transient voltage suppressor (TVS) diode array. It is designed to protect sensitive CMOS ICs from the damaging effects of ESD and lightning.
功能
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 10 A (8/20 µs)
- 优化配置,可方便电路板布局
- Protects one line pair
- Low capacitance (< 10 pF) for high-speed interfaces
- 钳位电压低
- 小漏电流
- Working voltage: 24 V
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- ADSL interfaces
- RS-232, RS-422, V.90 interfaces
- Multi-protocol serial transceivers
- 高速数据线
- Portable electronics
- WAN/LAN equipment
应用
封装

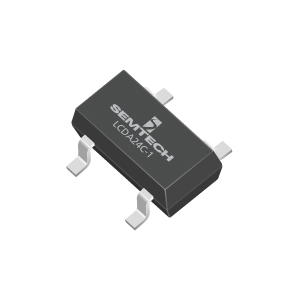

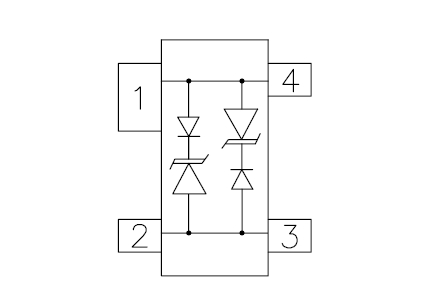

- SOT-143
- 3000 pcs. Tape & Reel
订购代码
- LCDA24C-1.TCT
