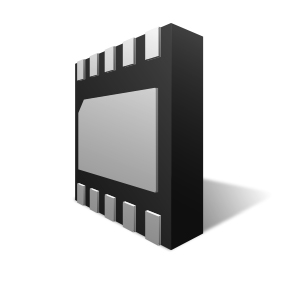

TClamp2502N
TransClamp® 是一种低电容 TVS 阵列，旨在保护高速数据接口。该系列专为保护连接到数据和传输线的敏感元件而设计，以防止 ESD（静电放电）、CDE（电缆放电事件）和闪电导致的过电压。
功能
- Transient protection for high-speed data lines to
- Bellcore 1089 (Intra-Building) 100A (2/10μs), IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns), IEC 61000-4-5 (Lightning) L5, 95A (8/20μs)
- Low capacitance (12pF line-to-line)
- Low operating voltages (2.5V)
- 钳位电压低
- Small SLP Package saves board space
- Solid-state technology
- 以太网
- T3/E3
- Integrated Magnetics
- Carrier Class Equipment
- Customer Premise Equipment
应用
封装

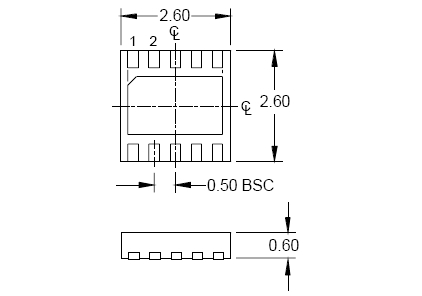

- SLP2626P10 10L
订购代码
- TClamp2502N.TCT: Lead=Free, RoHS/WEEE Compliant, 3000 pcs, tape and reel
Pb(Lead)-Free/RoHS-Green Info
