LC05-6
The LC05-6 is designed to protect four high-speed data lines (two differential pairs) from transient over-voltages which result from lightning and ESD.
功能
- 6 V working voltage
- Transient protection for high-speed data lines to
- Telcordia (Bellcore) GR 1089 IPP = 100 A (2/10 µs)
- ITU K.20 IPP = 40 A (5/310 µs)
- IEC 61000-4-2 (ESD) < 25 kV
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 100 A (8/20µs)

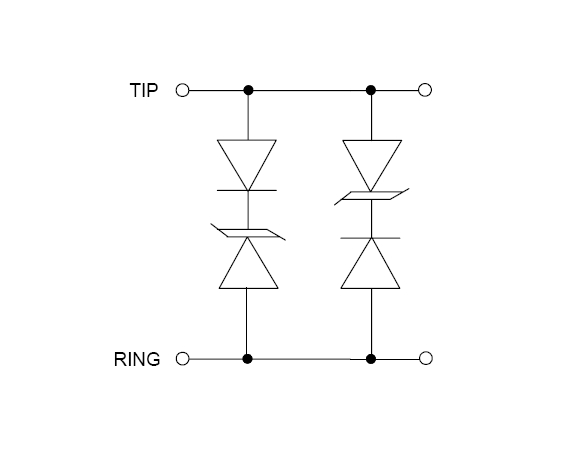

- Protects two tip-and-ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- 钳位电压低
- 固态硅雪崩技术
- T1/E1 line cards
- Base stations
- WAN equipment
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
应用

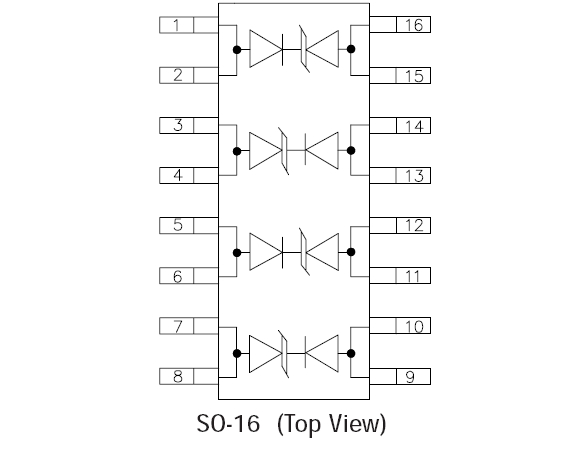

封装

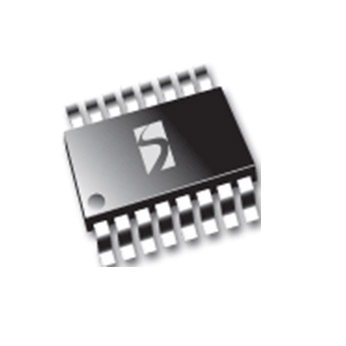

- SO-16
订购代码
- LC05-6.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
