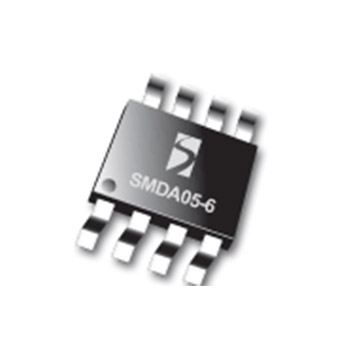

SMDA05-6
The SMDA series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- ESD protection to
- 300 watts peak pulse power (tp = 8/20 µs)
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)
- Protects up to 6 unidirectional lines
- Low operating voltage
- 钳位电压低
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- 5 V data and I/O lines
- Communication lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Servers
- Notebook & desktop PC
- Instrumentation
- 外围设备
应用
封装
- SO-8
- 500 pcs. Tape & Reel
订购代码
- SMDA05-6.TBT
