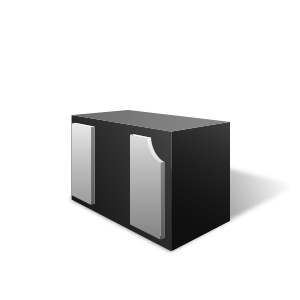

uClamp0301PQ
μClamp TVS 二极管专为汽车应用而设计，符合 AEC-Q100 3 级标准。与其他技术相比，它们具有更出色的电气特性，例如钳位电压较低、无器件退化等。它们可以保护灵敏的半导体元件免受静电放电 (ESD)、雷电、电气快速瞬变 (EFT) 和电缆放电事件 (CDE) 造成的损害。
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)
- 电缆放电事件 (CDE)
- Ultra-small package
- Protects one data line
- 钳位电压低
- 工作电压：3.0V
- 小漏电流
- 固态硅雪崩技术
- AEC-Q100 3 级认证
- 汽车应用
- 蜂窝手机和配件
- 笔记本电脑和手持设备
- 便携式仪表
- 数码相机
- 外围设备
- MP3 播放器
应用
封装
- SLP1006P2：1.0 x 0.6 x 0.5 mm，10000 颗，卷带包装。
订购代码
- uClamp0301PQTNT：无铅、无卤素且符合 RoHS/WEEE 标准。
