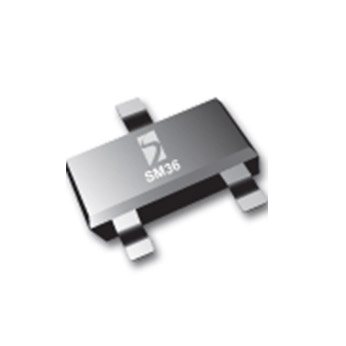

SM36
The SM series of transient voltage suppressors (TVS) are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- 36 V working voltage
- 300 Watts peak pulse power (tp = 8/20 µs)
- Protects one bidirectional line or two unidirectional lines
- Transient protection for data & power lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
- 钳位电压低
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- Cellular handsets and accessories
- Portable electronics
- 工业控制
- Set-top boxes
- Server, notebook, and desktop PCs
应用
封装
- SOT-23
- 3000 pcs. Tape & Reel
订购代码
- SM36.TCT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
