概览

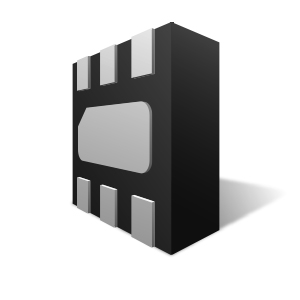

The EClamp®2522P is an easily implemented solution for protection and termination of low speed or full speed Universal Serial Bus (USB) ports. Each device will provide termination, filtering, and ESD protection for one upstream USB port on cellular phones and other portable electronics.
功能

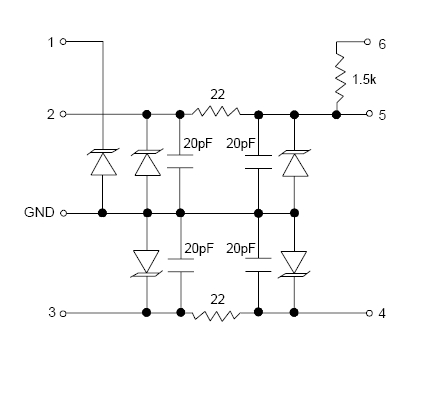

- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- TVS working voltage: 5.25V
- Termination Resistor: 22 Ohms
- Capacitance: 45pF (Max at VR = 0V)
- Protection and filtering for one USB port
- Solid-state technology
- Lead-free, RoHS/WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2522P Datasheet | 2018-12-14 | | |
应用
- USB Ports
- 蜂窝手机
- PDAs
- PC Peripherals
- MP3 播放器
