EClamp2410P
The EClamp®2410P is a combination EMI filter and line termination device with integrated TVS diodes for use on Multimedia Card interfaces. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They have been optimized for protection of T-Flash/MicroSD interfaces in cellular phones and other portable electronics.
功能
- Bidirectional EMI/RFI fi ltering and line termination with integrated ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- TVS working voltage: 5V
- Termination Resistors: 45Ω
- Pull Up Resistors: 15kΩ (3 each) and 50kΩ
- Typical Capacitance per Line: 12pF (VR = 2.5V)
- 六条线路和 Vdd 保护和终端
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- T-Flash/MicroSD 接口
- MMC Interfaces
- CDMA、GSM、3G 手机
应用

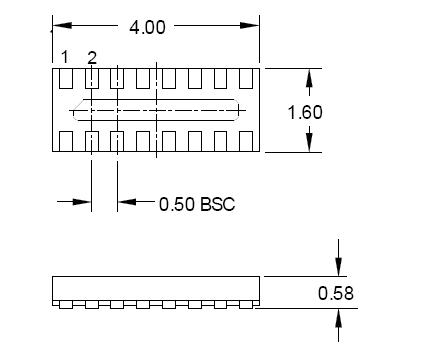

封装
- SLP4016P16
- 3000 pcs. Tape & Reel
订购代码
- EClamp2410P.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP2410P
产品描述
ESD PROTECTION DEVICE FOR T-FLASH/MICRO SD INTERFACES

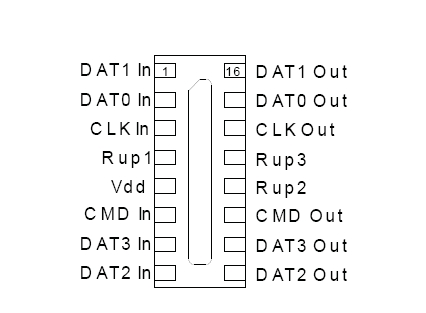

引脚数
16
封装类型
SLP4016P16
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
镍钯金
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
声明和报告
IPC-1752-2
